3K Twill Plain 3K Flexible Carbon Fiber Sheet 0.1mm 0.2mm 0.3mm 0.5mm 0.6mm

Product Description

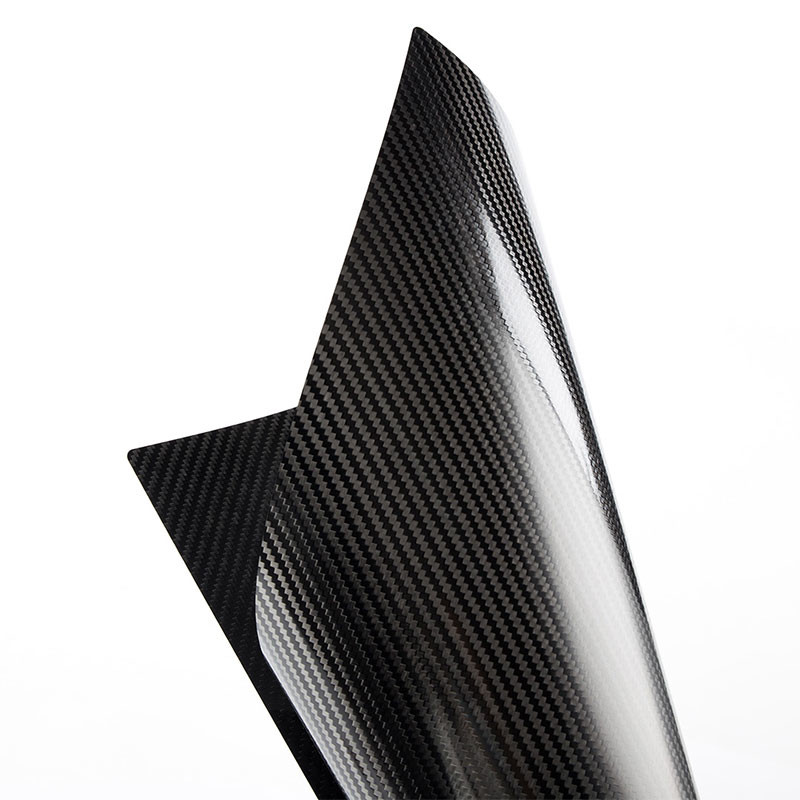

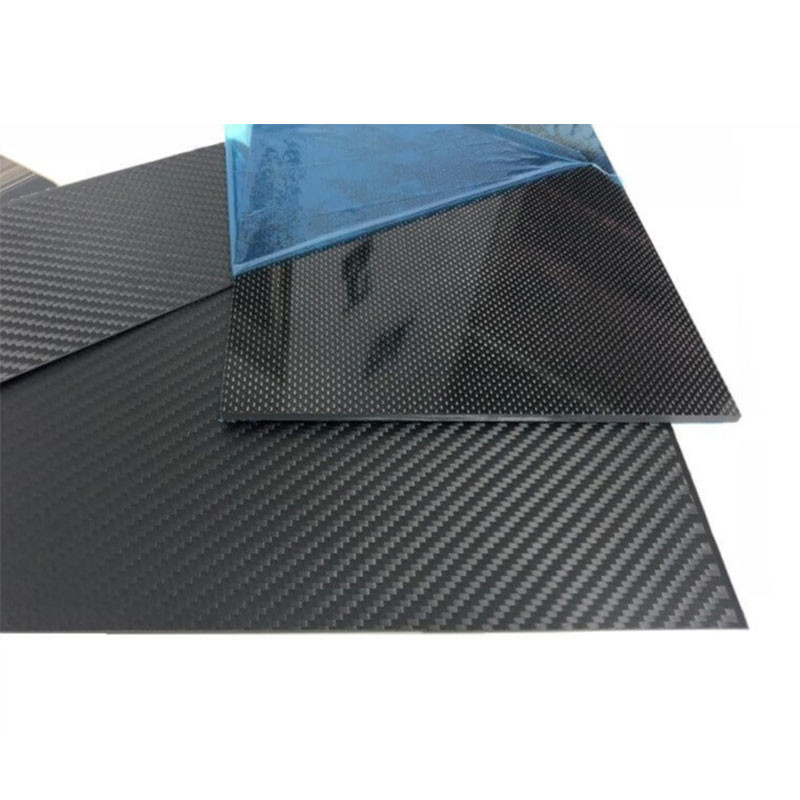

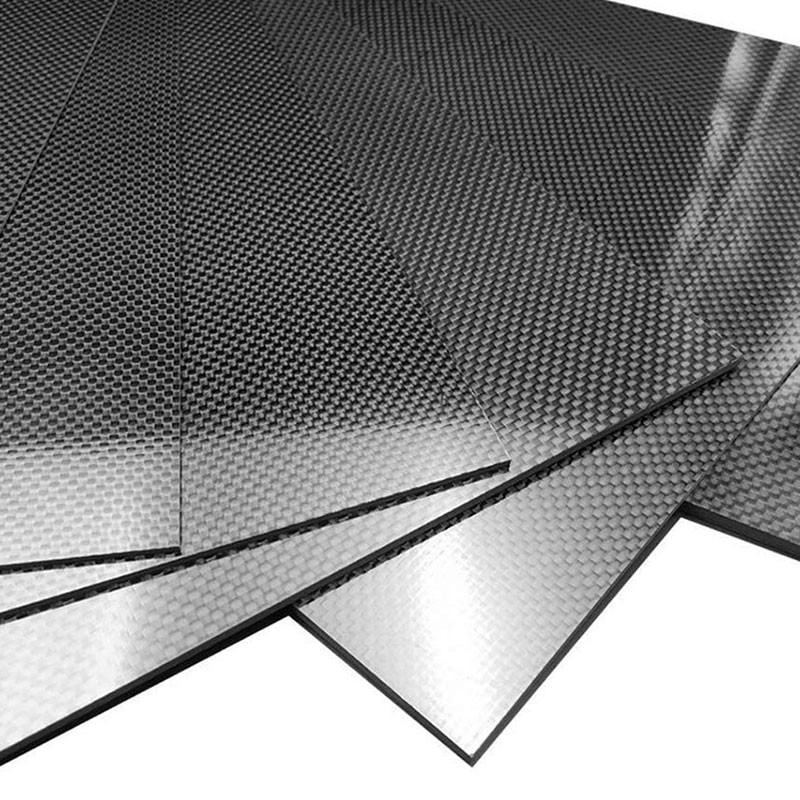

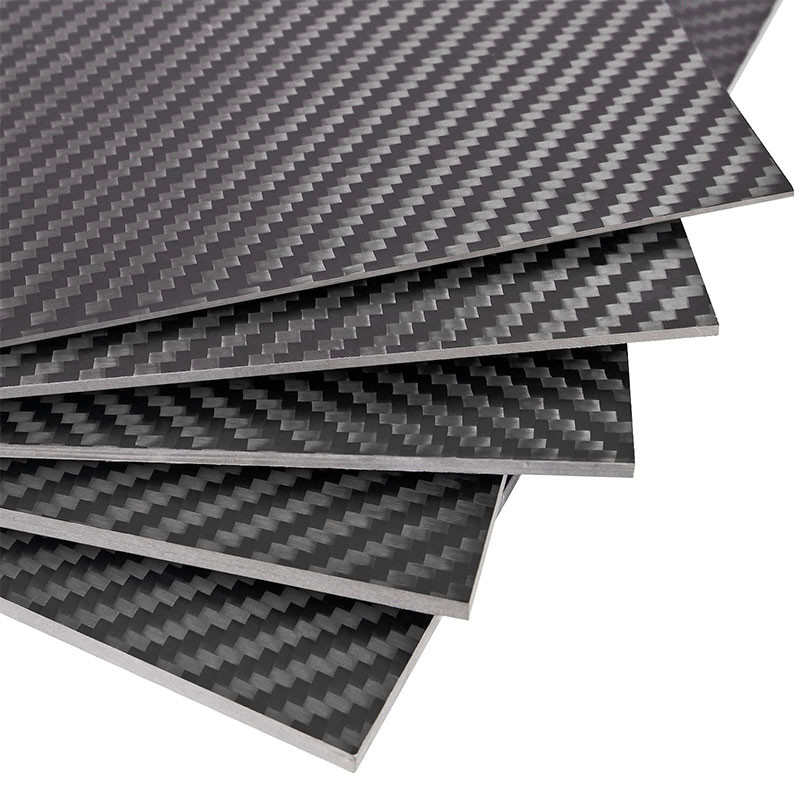

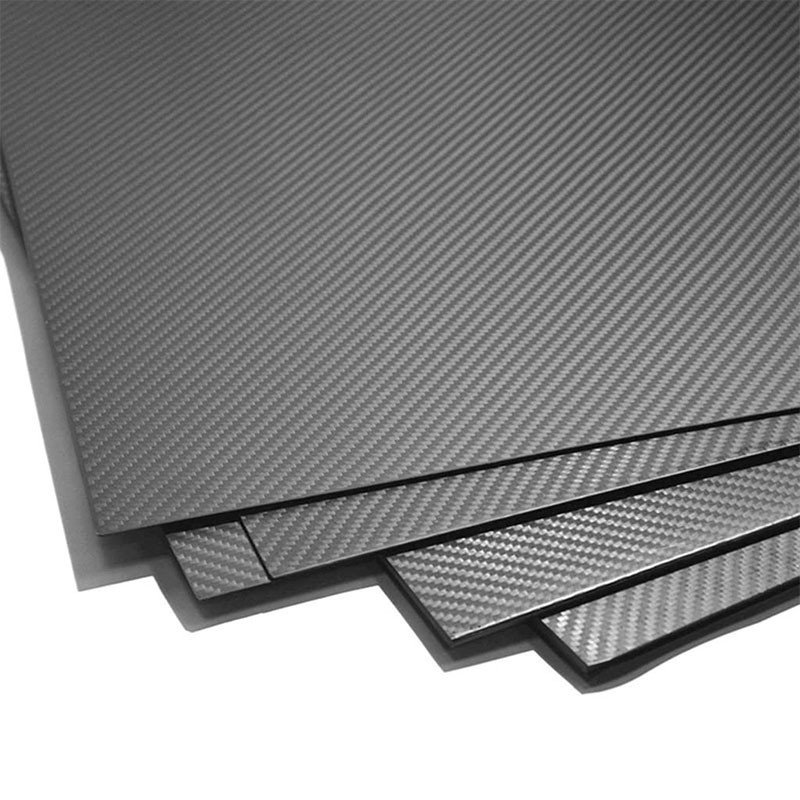

0.1mm 0.2mm 0.3mm 0.5mm 0.6mm 3K Twill Plain 3K Flexible Carbon Fiber Sheet

This is some delicate carbon fiber composite over here! Forged carbon fiber being extremely strong and unbelievably lightweight, this material can propose various usage ideas. I can’t even start with the possibilities it brings to the lucky ones who get to use it. The special processing technique of this material ensures a neat final product, which is mostly used for decorative purposes. The list of areas you can use it in is truly endless: from luxurious stationery, phone or tablet cases to much bigger items.

3K carbon fiber sheet refers to a type of carbon fiber composite material known for its high-quality weave pattern and finish. The term "3K" in the context of carbon fiber sheets refers to the specific weave pattern of the carbon fibers, where "K" stands for "thousand." Therefore, a 3K carbon fiber sheet means that there are approximately 3,000 carbon fibers per bundle in the weave pattern.

Here are some key points about 3K carbon fiber sheets:

• Weave Pattern: The 3K carbon fiber sheet features a classic plain weave pattern. This weave pattern is characterized by a simple crisscrossing of carbon fibers, resulting in a symmetrical, checkerboard-like appearance.
• Aesthetic Appeal: The 3K weave pattern is highly regarded for its aesthetic appeal. It provides a classic and visually pleasing finish that is often preferred for both functional and decorative carbon fiber applications.
• Strength and Stiffness: Like other carbon fiber composites, 3K carbon fiber sheets offer excellent strength-to-weight ratios and high stiffness, making them suitable for various structural and load-bearing applications.
• Versatility: These sheets are versatile and can be used in a wide range of industries and applications, including automotive, aerospace, marine, sporting goods, and more.
• Customization: 3K carbon fiber sheets can be customized in terms of thickness, size, and surface finish to meet specific project requirements.

Features:

• Reinforcing materials for C/C composites.
• High strength, lightweight, using imported raw materials from Taiwan and Japan.
• High-temperature filter material for corrosive liquids.
• Conductive materials, electrodes, and antistatic properties.

Application:

Carbon fiber board is widely used in surface decoration of various metal accessories, leather goods, pens, notebooks, jewelry, furniture, etc.

Single-Sided Carbon Fiber Plate Specification:

FAQ:

1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?

At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.

2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?

Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.

3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?

We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.

4. Are carbon fiber sheets of the quasi-isotropic type available?

We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.

5. What is the thermal resistance of carbon fiber sheets?

Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.

6. How can I cut carbon fiber sheets in my workshop?

The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.

7. Can carbon fiber sheets be painted?

Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.
