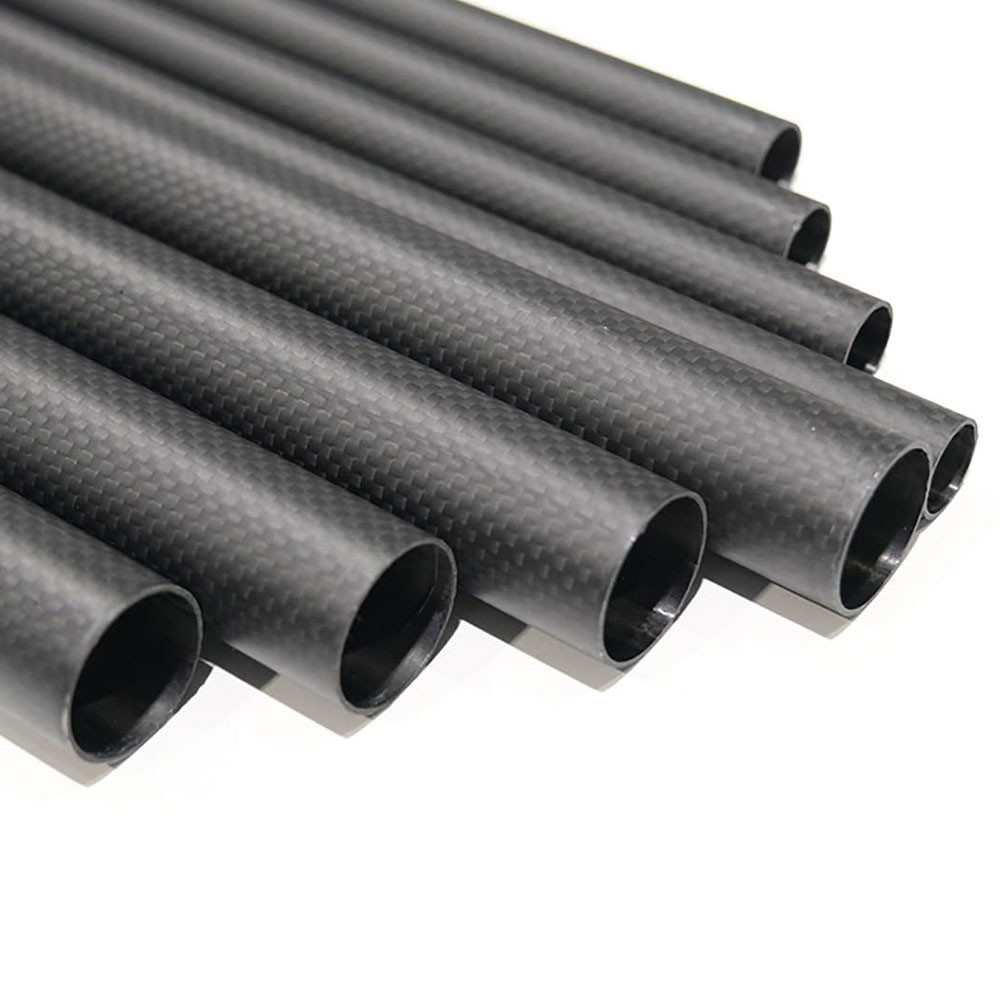

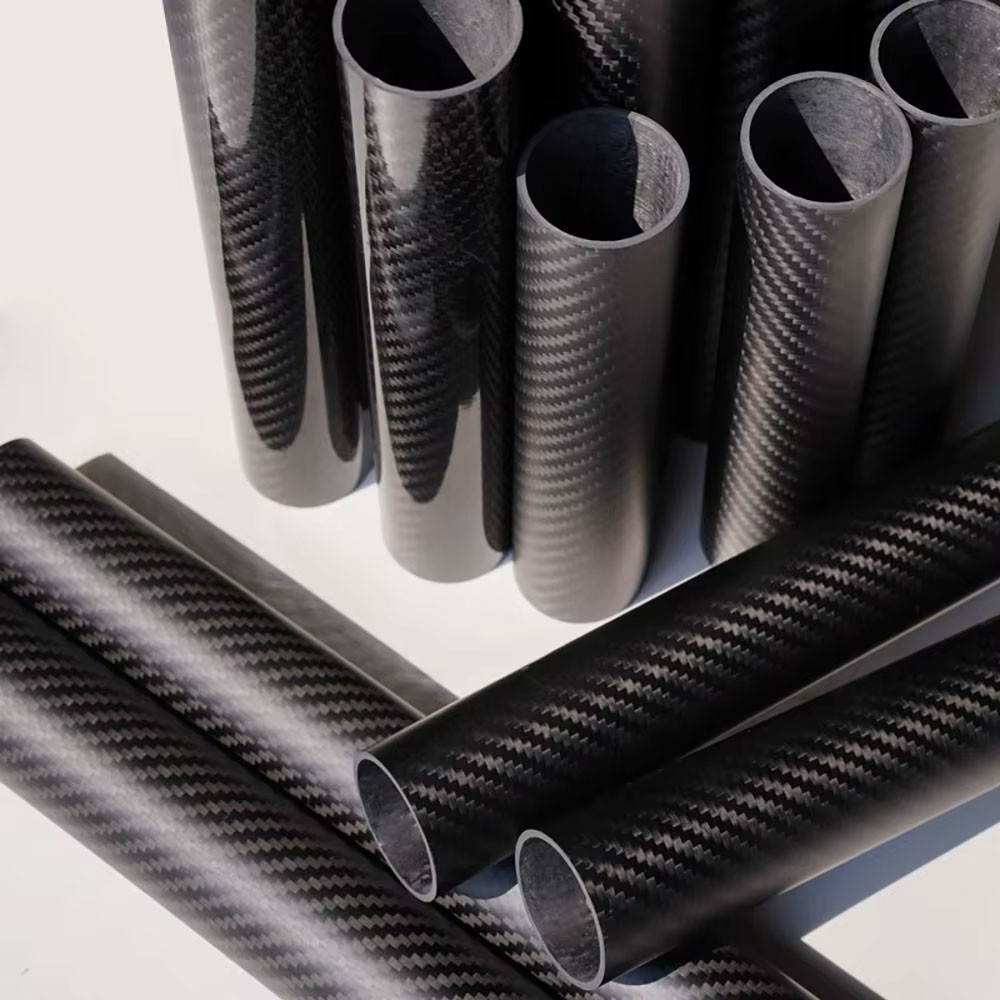

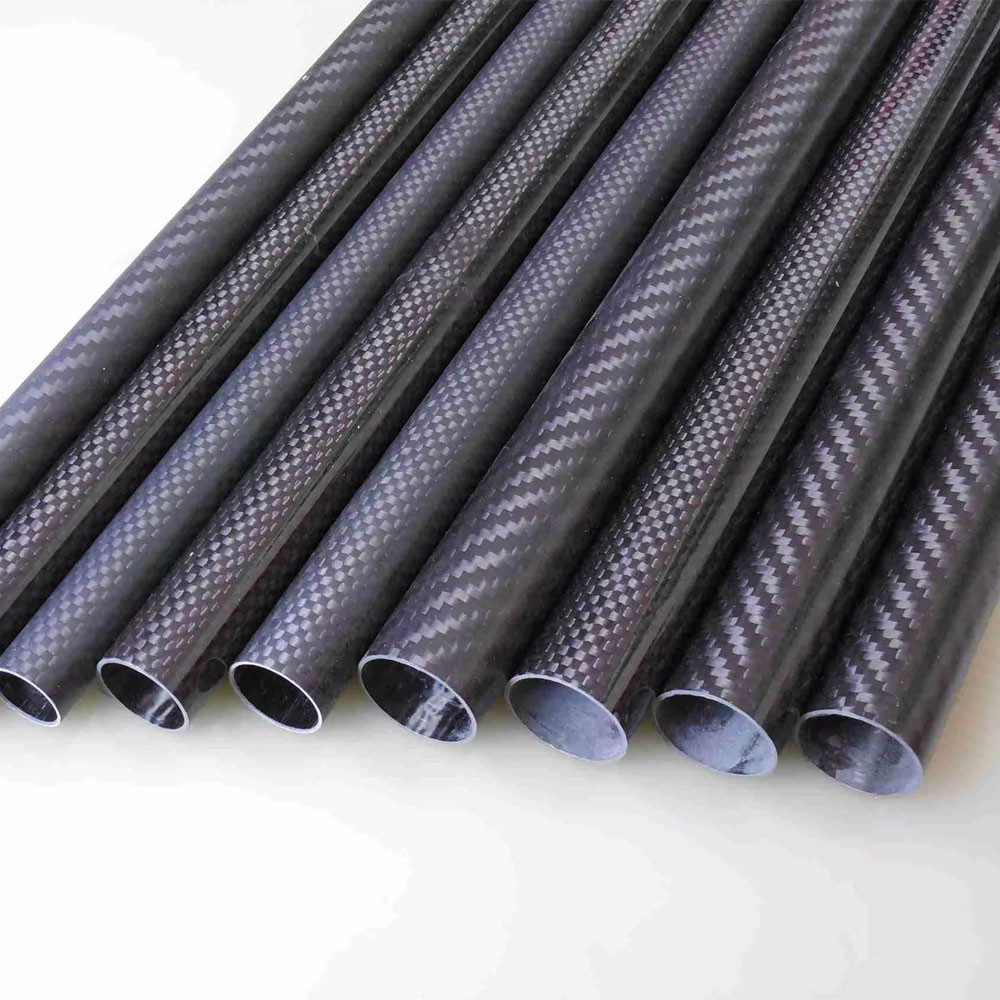

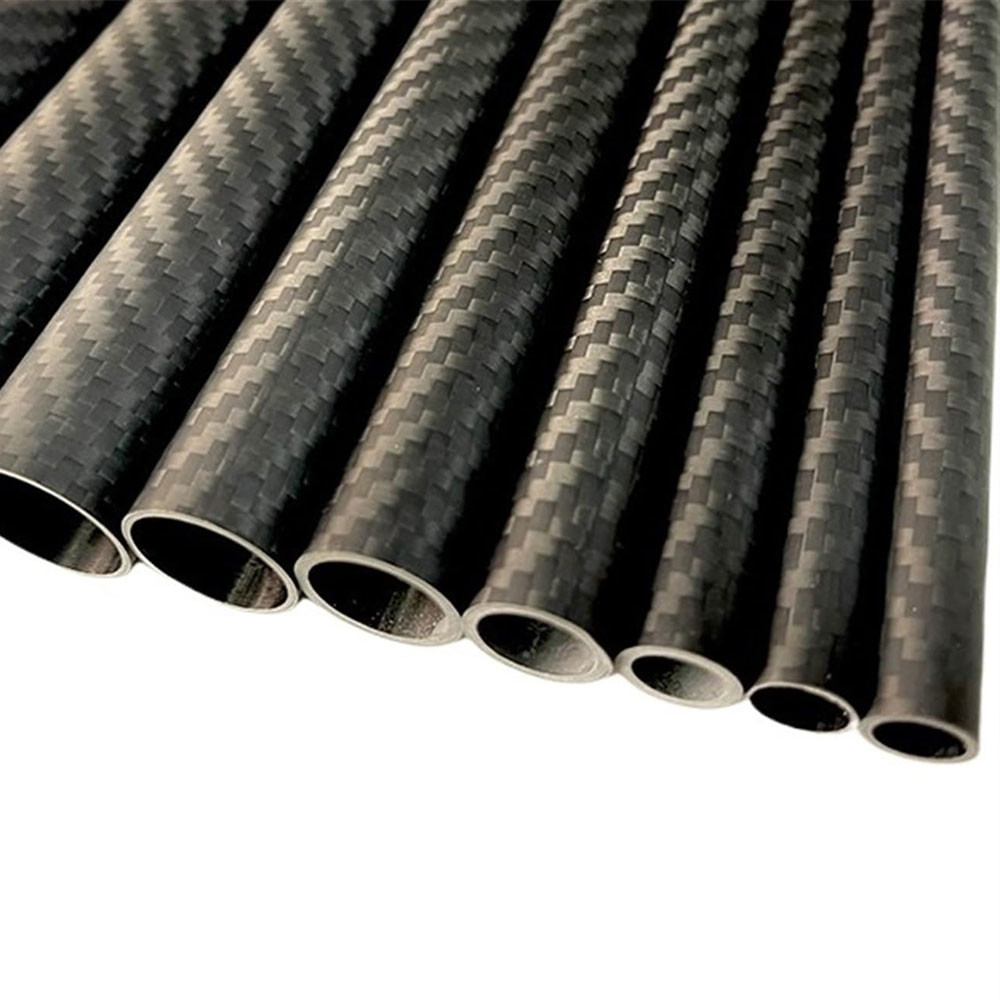

Customized 3K Weave Carbon Fiber Round Tube Roll Wrapped Tubing - High Tensile Strength

Product Description

Customized 3K Weave Carbon Fiber Round Tube Roll Wrapped Tubing - High Tensile Strength

Carbon fiber composites have revolutionized the aerospace, automotive, and sporting industries due to their exceptional strength-to-weight ratio. Among the various products, the 3K carbon fiber tube is a versatile component with applications in diverse fields. This article will explore the features, manufacturing process, and applications of 3K carbon fiber tubes, shedding light on their remarkable properties and benefits.

Twill Carbon Fiber Tube Properties

• High strength-to-weight and stiffness-to-weight ratios.
• Fatigue resistance.
• Dimensional stability due to an extremely low coefficient of thermal expansion (CTE).
• 100% high-quality pure carbon fiber (aka full carbon).
• Pin-hole-free high-matte cosmetic surface.
• Wide range of diameters and tube lengths available.
• Offer carbon fiber tube cutting service according to your design drawings, Cut to dimensions with CNC machining center – which ensures stable and precise dimensions.

Carbon Fiber Tube Applications

Unique properties of wrapped carbon fiber tubes place them in high demand in many industries. More and more often these days, carbon fiber tubes replace steel, titanium, or aluminum tubes in applications where weight is an important factor. Weighing in at as little as ⅓ the weight of aluminum tubes, it’s no wonder that carbon fiber tubes are often the preference in industries such as aerospace, high-performance vehicles, and sporting equipment, where weight is a crucial factor.

Carbon tubing can be used for many tubular applications. Some current common uses include:

• Carbon fiber tube for RC planes
• Robotics and automation
• Telescoping poles, carbon fiber trekking poles
• Metrology instrumentation
• Idler rollers
• Drone components
• Telescopes
• Lightweight drums
• Industrial machinery
• Guitar necks
• Aerospace applications
• Formula 1 race car components

How to use carbon fiber tubes?

• Drilling holes on tubes, and using screws locking together.
• Carbon fiber tube connectors and accessories.
• Use carbon fiber connectors or accessories to connect our round tubes to form complex rigid structures. It’s easy and quickly assemble and disassemble tubing structures, suit for carbon fiber tube DIY project.

LIJIN can provide an extensive range of high-performance, light weight carbon fiber tubing for use in a wide variety of industries and applications. Available in standard and custom sizes, our lightweight, carbon tubes exhibit outstanding strength, durability, and rigidity. They deliver excellent tensile strength characteristics compared to conventional structural metals and are the first choice in a variety of performance applications.

If you have any carbon fiber tube projects, please contact our sales team to discuss your requirements.

What are Carbon Fiber Tubes?

Definition and Basic Characteristics

Carbon fiber tubes (also known as carbon fiber rods if they are stiffer and heavier) are predominantly cylindrical structures made from carbon fibers implanted in a polymer matrix, oftentimes an epoxy resin. They are however also available in other shapes such as rectangular or hexagonal, to suit different structural and design requirements. The CFRP tubes distinguish themselves in the market due to the high strength-to-weight ratio; they have more strength and are much lighter compared to their basic counterparts - like steel and aluminum. The carbon fibers provide high tensile strength, usually on the order of 3.5 GPa (Gigapascals), while the polymer matrix binds them together and provides some rigidity to the fibers for strengthening. Carbon fiber tubes also have a density of about 1.6 g/cm³ compared to steel at 7.8 g/cm³ and aluminum at 2.7 g/cm³.

Comparison with Other Materials

Carbon fiber tubes differ considerably compared to other materials. For instance, compared to steel and aluminum, carbon fiber tubes weigh approximately 70% and 40% less respectively, while having equivalent or better strength—application-related increased efficiency and performance, as seen in industries such as aerospace and automotive. In addition to this, carbon fiber tubes don't corrode like steel rusts over time or aluminum corrodes when the conditions dictate so. The modulus of elasticity for carbon fiber is about 230 GPa as compared to 200 GPa in steel and 69 GPa in aluminum, thus it shows that the CFRP tubes are stiffer and have less tendency to deform.

As for their thermal properties, Carbon fiber tubes again outperform traditional materials in terms of their thermal properties. Carbon fiber has a lower coefficient of thermal expansion (CTE) compared to steel and aluminum; that is, it expands and contracts less when subjected to variations in temperature. This dimension stability is highly demanded in applications where precision is a central requirement, as in aerospace and sporting equipment of high performance. Besides, carbon fiber's thermal conductivity is lower than metals, which makes it an excellent choice for applications requiring thermal insulation.

Besides that, any carbon fiber tube has greater fatigue resistance compared with its metal equivalents. Metallic materials, especially steel, and aluminum, upon experiencing cycles of load application and removal, tend to form micro-cracks, which will eventually lead to failure. Carbon fiber will maintain its integrity for a longer period under cyclic loading, a benefit particularly in aircraft structure applications and automotive parts where long-term durability is essential.
