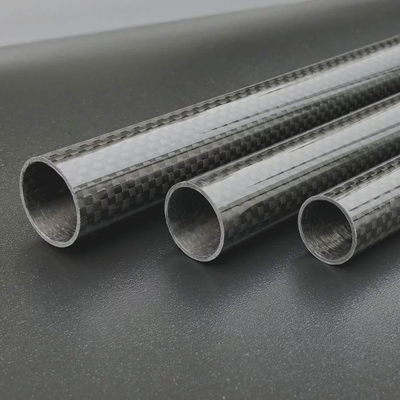

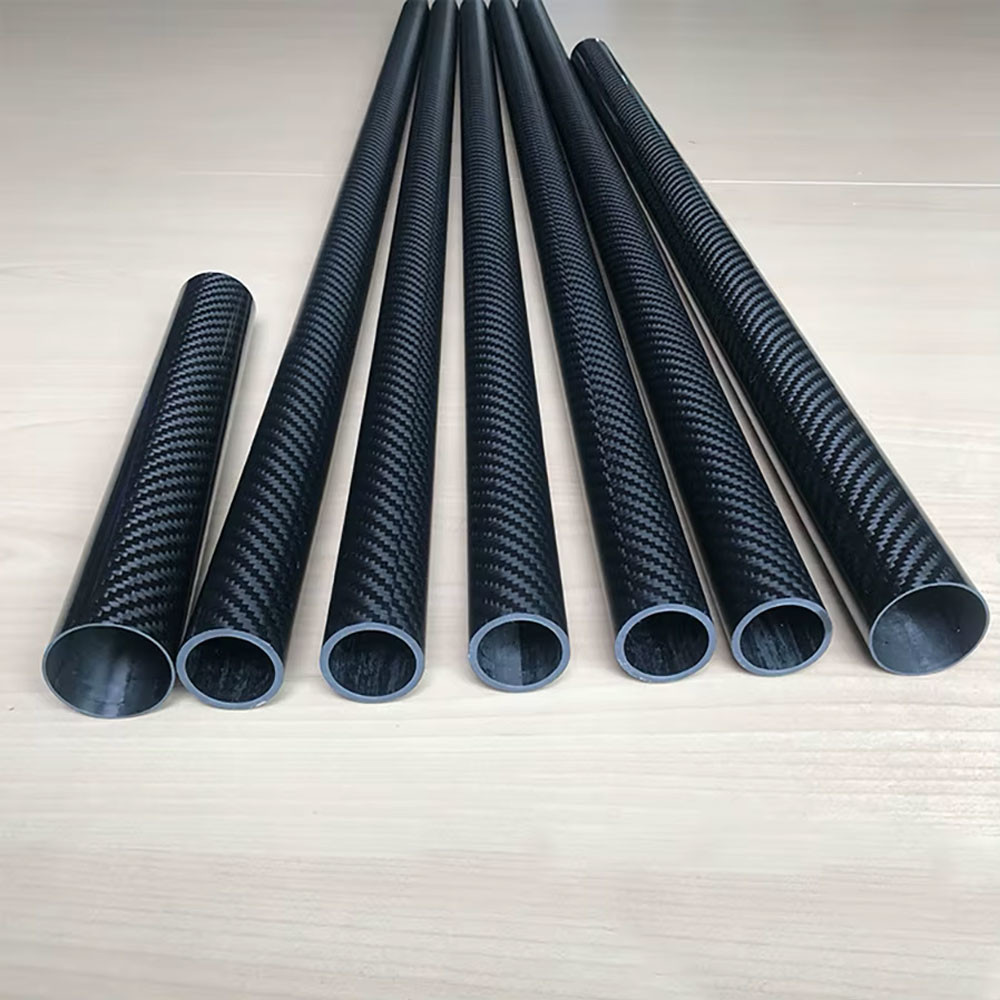

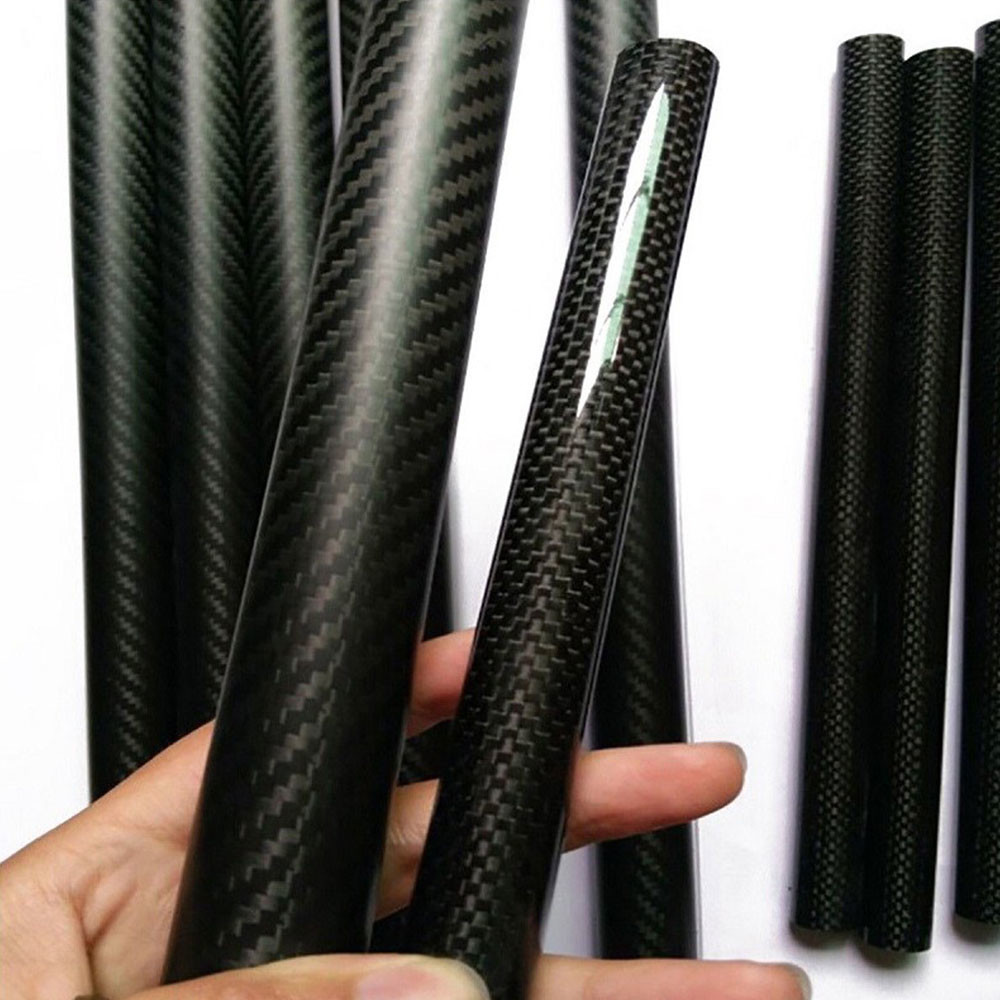

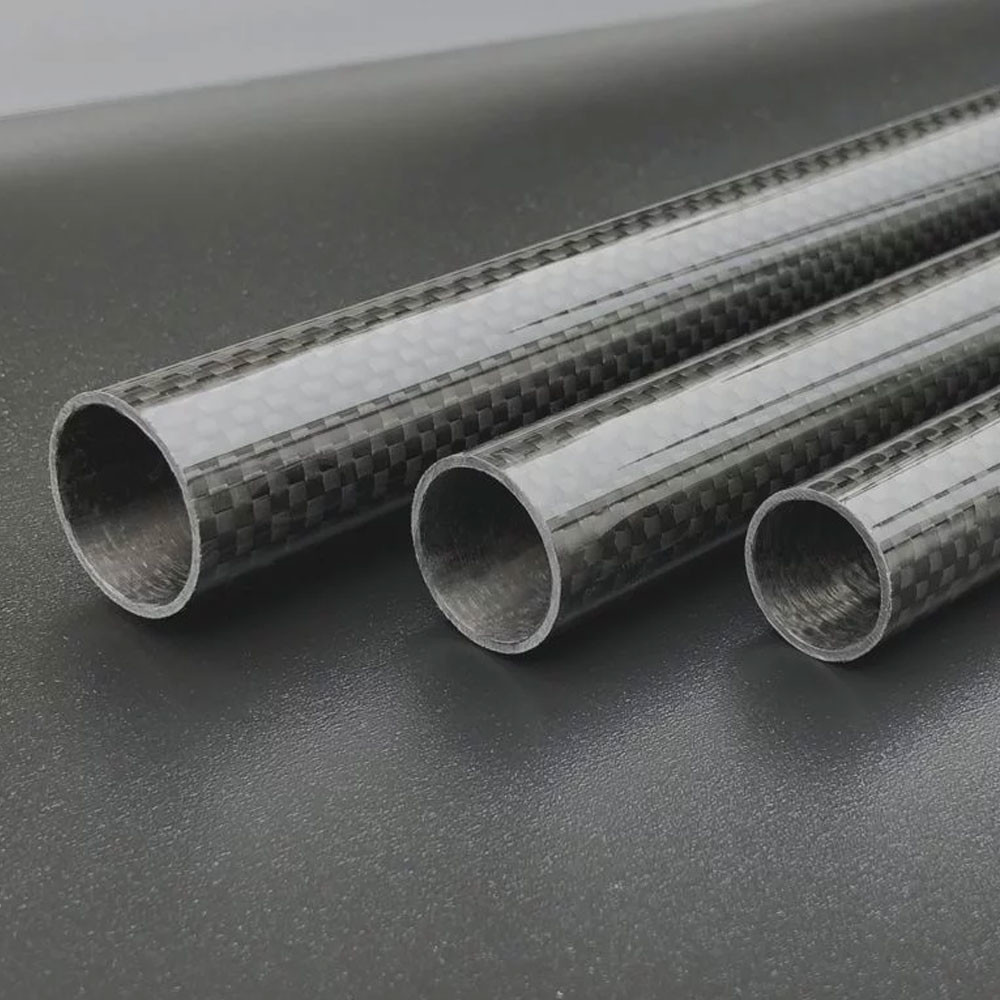

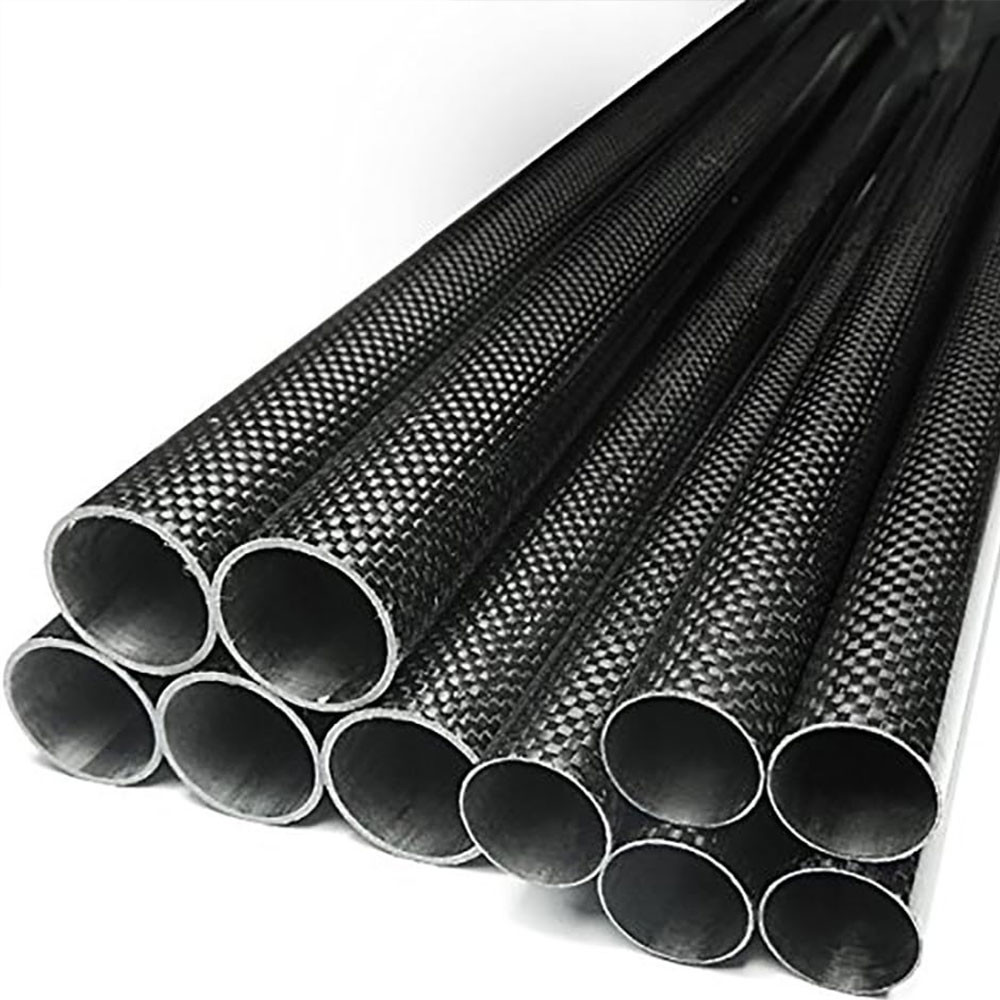

100% Pure Carbon 3K Roll Wrapped Carbon Fibre Tube 21 22 24 25 26 28 29 30mm L500mm

Product Description

100% Pure Carbon 3K Roll Wrapped Carbon Fibre Tube 21 22 24 25 26 28 29 30mm L500mm

3K Roll-Wrapped Carbon Fibre Tube – High-Performance Lightweight Composite Solution

The 3K roll-wrapped carbon fibre tube is a high-performance composite component designed for applications requiring an optimal balance of strength, rigidity, lightweight structure, and aesthetic appeal. Manufactured using 3K carbon fiber fabric—which consists of 3,000 filaments per tow—and utilizing the roll-wrapping process, this tube delivers exceptional mechanical properties and a professional-grade finish. It’s a top choice across aerospace, automotive, drone, robotics, industrial automation, and sports equipment industries.

Material Composition

The tube is made using 3K carbon fiber—the most commonly used fiber type in structural composites. Each tow (fiber bundle) comprises 3,000 individual carbon filaments. This fabric is laid in specific orientations to optimize performance, typically including:

• 0° (axial) for stiffness and compression along the tube's length
• 90° (hoop) for radial strength
• ±45° (bias layers) for torsional resistance

The reinforcement is combined with high-quality epoxy resin to create a strong, durable matrix that bonds the fibers, resists UV and chemicals, and adds environmental resilience.

Manufacturing Process: Roll Wrapping

Roll wrapping is a precision manufacturing technique where pre-impregnated carbon fiber sheets (prepreg) are carefully wrapped around a mandrel in multiple layers. Each layer is strategically oriented to enhance specific mechanical properties. The wrapped mandrel is then placed in a high-temperature oven or autoclave to cure the resin and solidify the structure.

This method offers key advantages

• Consistent wall thickness
• Tight dimensional tolerances
• Superior surface finish
• Custom fiber orientation for strength/torsion control

Compared to pultruded tubes (where fibers run mostly along the length), roll-wrapped tubes provide better torsional strength and multidirectional stiffness, making them ideal for more demanding applications.

Key Features & Advantages

• High Strength-to-Weight Ratio: Carbon fiber is up to 5x stronger than steel yet significantly lighter. These tubes deliver unmatched strength while reducing overall weight in assemblies.
• Excellent Stiffness and Rigidity: Maintains structural integrity under load and resists deformation, making it ideal for load-bearing applications.
• Superior Torsional Resistance: The roll-wrapped structure allows the tube to resist twisting forces, essential for applications like propeller arms or mechanical shafts.
• Corrosion and Fatigue Resistant: Unlike metal tubes, carbon fiber is not affected by rust, moisture, or most chemicals, and it resists fatigue over time.
• Aesthetic Appearance: The visible 3K weave, especially in a glossy or matte finish, offers a professional, high-tech look, often desirable in consumer and industrial applications.
• Customizable: You can tailor the fiber direction, length, diameter, thickness, and finish to your exact specifications, making it highly versatile.

Carbon Fiber and Composites Experts

​LIJIN designs and manufactures carbon fiber composites and parts for customers nationwide. From high-end robotics to precision industrial and manufacturing, LIJIN parts deliver the high performance that modern industries demand. Our engineers solve problems and deliver solutions using the latest composites technologies.

Connect with us for industry-leading composites expertise. More than just a carbon fiber manufacturing company, our composites knowledge and experience generate real innovation to fulfill our customers’ needs. Whether you need a single prototype or a reliable supplier for thousands of components, LIJIN delivers.

The LIJIN Promise

Quality

LIJIN runs a responsive, nimble operation with relentless attention to detail. We pair creativity with precision to deliver customized solutions. Because we have excellent customer service, on-time performance, and deep composites expertise, we are the Gold Standard in composites manufacturing.

Expertise

Connect with LIJIN for experts who know composite materials down to the molecule. From materials science to part design and manufacturability, our teams bring time-tested expertise and inventive energy to every project. We speak your language and deliver solutions.

Reliability

You can count on our China facility to consistently produce the highest quality of composites. Our engineers and carbon fiber manufacturing experts will produce long-lasting and highly durable products that outperform the competition every time. Our ability to solve problems and produce turnkey solutions has built long-term partnerships with many of our customers.

Why Choose Us

• Factory directly offers, competitive price
• Integrity management, obtaining BV certification
• High-quality materials (choose Japanese Toray materials)
• Offer testing report, Timely delivery
• Offer processing service: punched, drilled, sawed, sheared
• Support small batch customization
• ODM/OEM/OBM service is accepted
